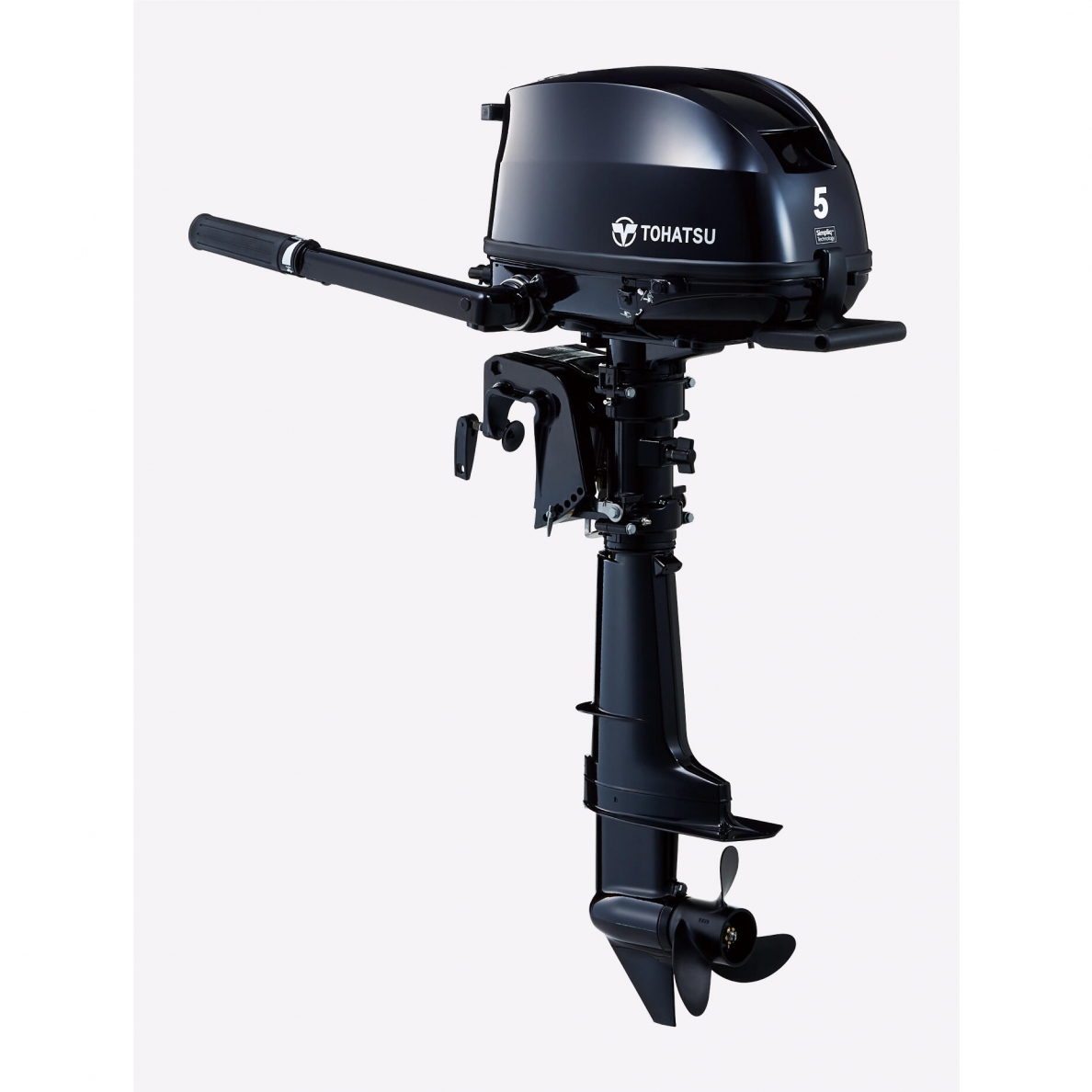

4-Stroke outboard engine Tohatsu MFS5D

  • 4-Stroke outboard engine Tohatsu MFS5D

    Price Engine model Buy
    126000
    Price elsewhere: 126000
    MFS5DDS
    Code: MFS5DDS
    Add to cart
    MFS5DSS
    Code: MFS5DSS
    Add to cart
    You can get 126000 points when purchasing.
    Leasing calculators
    • gf
    • sbl
    • esto
    Calculating...
    i
  • Engine 4 Stroke 1 Cylinder
    Output 5 ps (3.7 kw)
    Displacement 123 cc (7.5 cu.in.)
    Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
    Starting Manual
    Control Type Tiller Handle
    Gear Shift Forward - Neutral - Reverse
    Gear Ratio 2.15:1
    Propeller Selection Range 6" - 9"
    Transom Height 15", 20"
    Fuel Unleaded Gasoline (87 Octane)
    Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
    Oil Capacity 450 mL (15 fl. oz.)
    Fuel Tank Internal Fuel Tank Models (MFS5CD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank), External Fuel Tank Models (MFS5CS) : 12L (3.1 US Gal.) Separate Fuel Tank
    Weight* 25 kg (55 lbs.)
    Alternator Output Optional: 12V, 60W, 5A
    Max. RPM Range 4,500 - 5,500
    Digital CD Ignition System Standard
    Start In Gear Protection Standard
    Thermostat Controlled Cooling System Standard
    Through-The-Prop Exhaust Standard
    Oil Pressure Warning Standard
    Shallow Water Drive Standard



    Model Shaft Length Cylinders Tiller Handle Remote Fuel Tank Propeller
    MFS5DSS 15" 1 S   S
    MFS5DDS 15" 1 S See Note S

    S - standart

    Note : MFS5DD models includes an external fuel tank connector installed on the engine to allow user to connect an optional external fuel tank.
