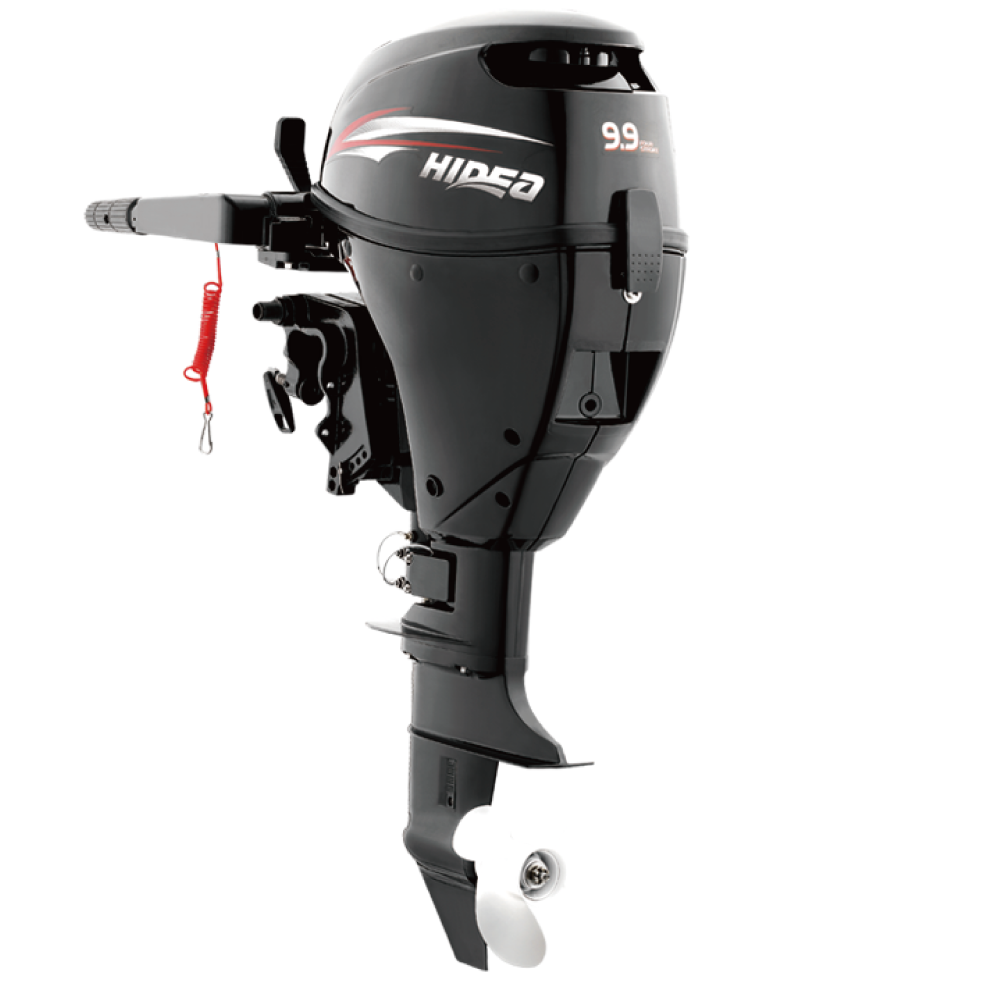

Hidea 4-stroke outboard HDF9.9L

Specifications:

• Specification Model HDF9.9
• Max.Output (hp/kw) 9.9/7.2
• Full Throttle Operating Range (rpm) 5000-5800
• Stroke 4
• Cylinder 2
• Displacement (cc) 212
• Bore×Stroke (mm) 56×43
• Compression Ratio 9.4:1
• Length×Width×Height (mm) 1038×360×1144
• Weight (kg) 42
• Transom Height (mm) 508
• Gear Ratio 27:13 (2.08)
• Gear Shift Position F-N-R
• lgnition System CDI
• Cooling System Water-cooling
• Starting System Manual/Electric start
• Control System Rear/Front operation
• Capacity of Fuel Tank (L) 12

Delivery set:

• Engine unit – 1 pcs.
• Thread plug, straight screw – 1 pcs.
• Cotter pin – 1 pcs.
• Impeller assy. – 1 pcs.
• Emergency starting handle – 1 pcs.
• Fuel case assy. – 1 pcs.
• Thread plug seal gasket – 2 pcs.
• Starter rope – 1 pcs.
• Fuel hose with connecter – 1 pcs.
• Toolkit – 1 pcs.
• Sleeve, spark plug – 1 pcs.
