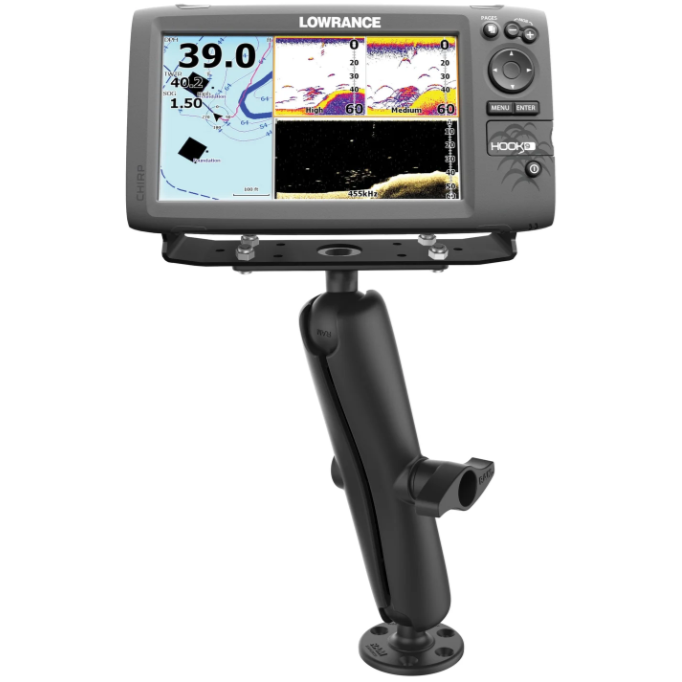

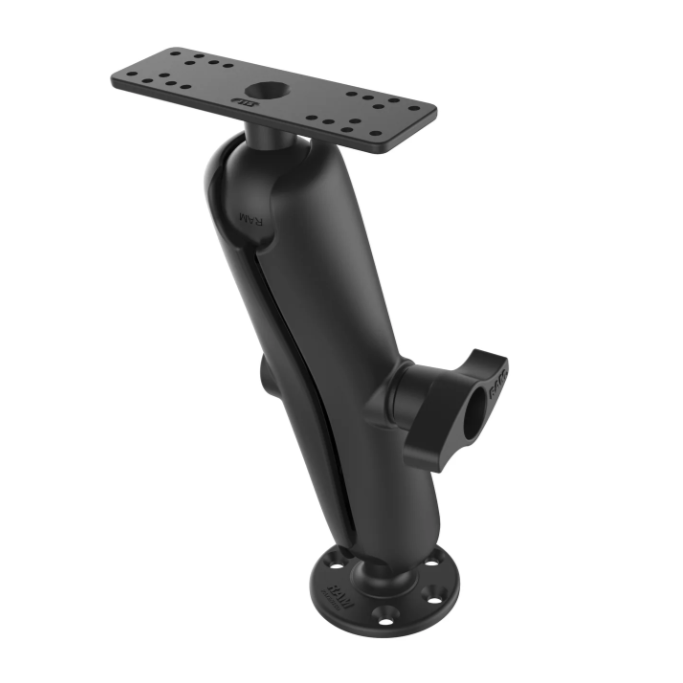

The RAM-D-115-E consists of a base with a 2.25” diameter D size ball, a long arm and a 6.25” x 2” marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9”-12” fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407 and more.

Product dimensions

• Overall Height: 15.2"

Socket to socket length

• 11.41"

Hole pattern

• See Drawings

Plate size

• Top Plate: 6.25" x 2"
• Bottom Plate: 3.68" Diameter

Ball size

• D Size (2.25")

Weight capacity

• Standard Use: 6 lbs
• Heavy-Duty Use: 5 lbs

Materials

• Marine-grade aluminum

Packaging type

• Retail Bag

Weight

• 5.09 lb

Additional Information
The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
